Screen filtration
Coarse and finer screen options for intake, cooling, irrigation and process-water protection.
FILTRATION
Keep filtering.
Clean online.
Automatic solids removal with suction-scanner cleaning while the remaining filtration area stays in service.
2–1,250 m³/hSeries-dependent flow per filter
1–2,000 µmDifferent screen / fine-media series
Online backwashMain filtration continues
DP / timed controlAutomatic cleaning initiation
TECHNOLOGY & CONFIGURATION
Automatic self-cleaning filters
Retained solids are removed by a moving suction assembly. Selection must account for the filter rating, solids loading and pressure available throughout the cleaning cycle.
Fine-media filtration
Selected media for fine suspended solids, algae and membrane pretreatment; capture basis is confirmed by series.
EXPLORE THE EQUIPMENT
See the different configurations.

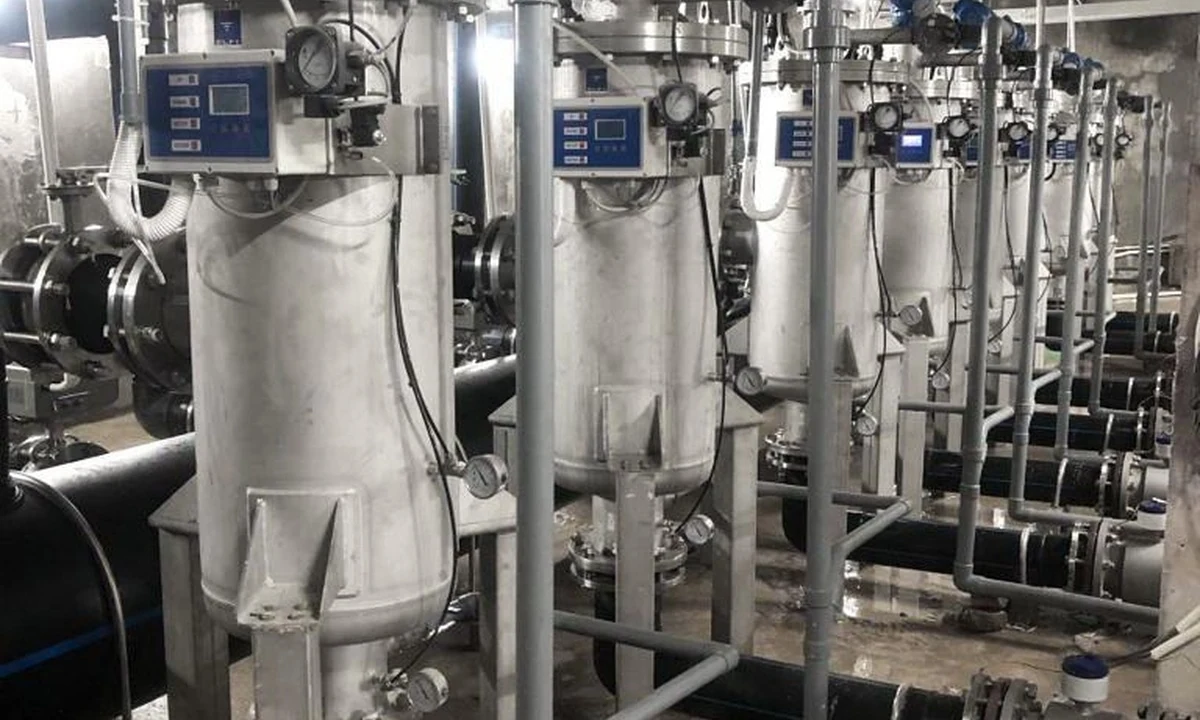

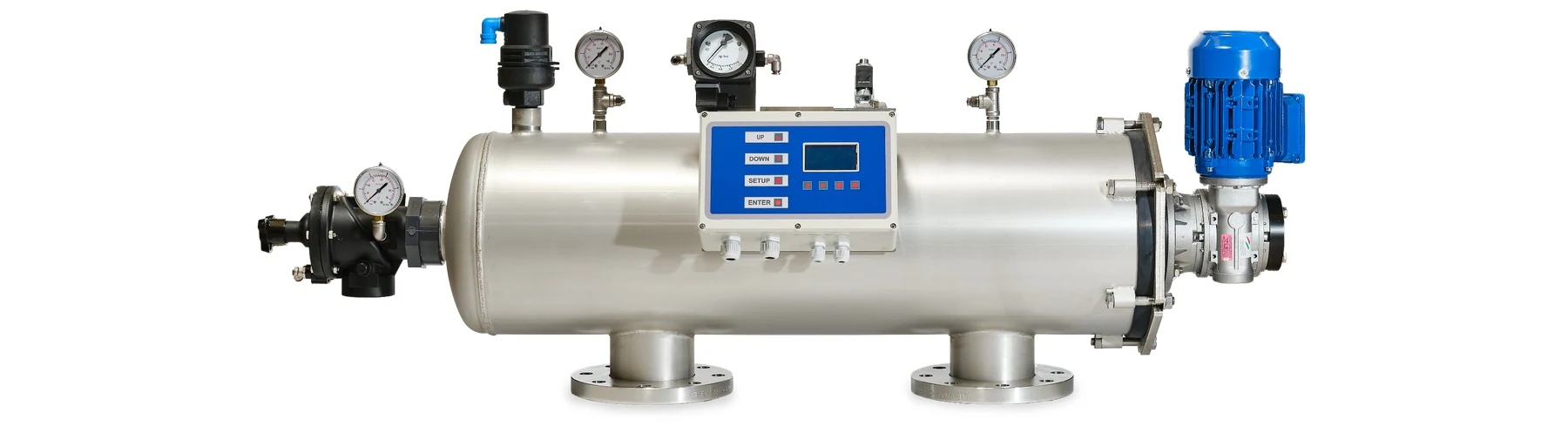

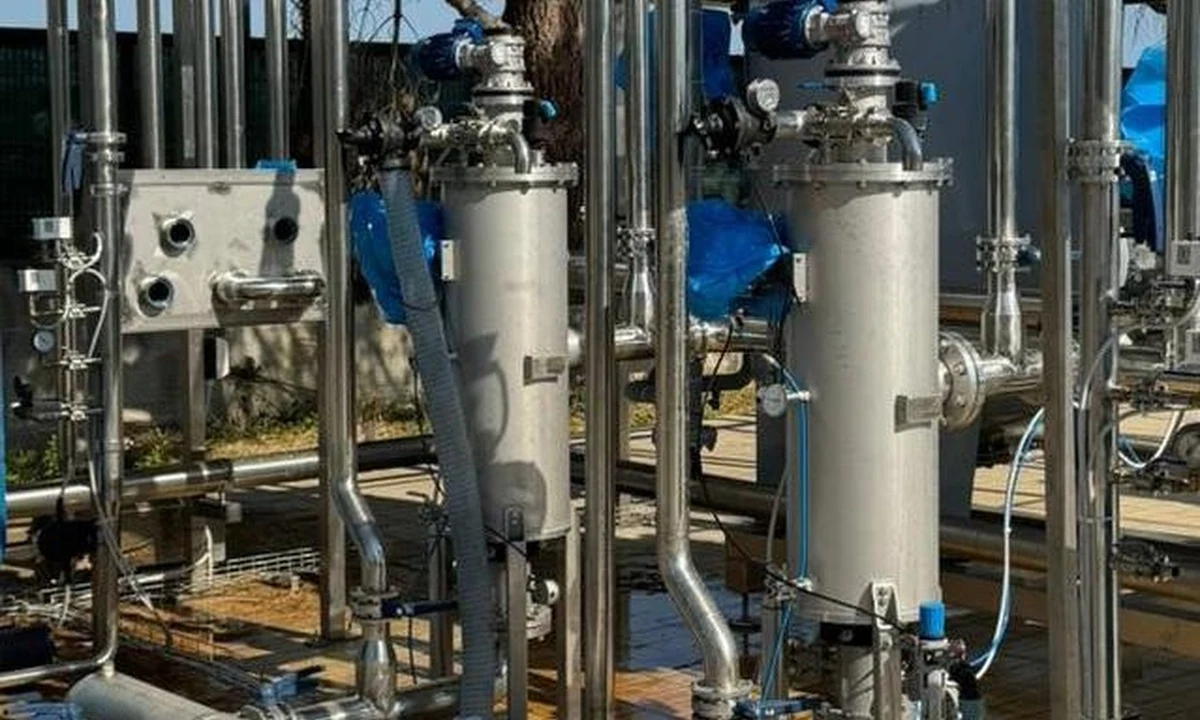

Representative equipment from the range. Final dimensions and arrangement follow the project duty. Select an image to enlarge.
PRELIMINARY SELECTION
Define the duty.
Select the configuration.
Published ranges support initial selection. Final equipment, dimensions, materials and performance commitments follow the confirmed project requirements.
| Series | Flow, m³/h | Filtration range |
|---|---|---|
| Compact screen | 2–15 | 300–25 µm |
| Large-flow screen | 2–1,250 | 2,000–25 µm |
| Compact fine | 2–15 | 20–1 µm |
| Large-flow fine | 2–260 | 20–5 µm |
The 1-micron selection applies only to the relevant fine-media series. Published pressure spans 0.5–10 bar across different series; cleaning pressure and maximum pressure are verified for the selected model.
PROCESS & SUPPLY BOUNDARY
Coordinate every stage.
01Water enters filter
02Solids retained
03DP / timed signal
04Suction scanner cleans
05Solids discharged to drain
Typical package scope
- Housing and selected filtration element
- Suction scanner and cleaning drive
- Differential-pressure instrumentation
- Cleaning controller and drain connection
Project options
- Duplex or parallel arrangement
- Common inlet, outlet and drain manifolds
- Skid valves and instrumentation
- Remote PLC / SCADA communication
Supply inclusions and options are confirmed in the agreed quotation. Installation, commissioning and operation are available in Jordan, Iraq and the UAE; installation supervision and commissioning are available in other countries.
REQUEST A QUOTE
Start with the
project requirements.
- Normal, peak and minimum flow
- Solids loading, particle size and chemistry
- Required micron rating
- Pressure, temperature and drain hydraulics
COMMON QUESTIONS
Before you specify.
Does cleaning stop the water flow?
The suction scanner cleans a localized area while the remainder continues filtering. Adequate cleaning pressure must be maintained.
Can every model filter to 1 micron?
No. The lowest rating belongs to a specific fine-media series. Flow capacity and effective capture are confirmed for the selected element.
