Media filtration
Continuous sand, quartz-sand pressure and V-type gravity filters for solids and turbidity.
FILTRATION
Water filtration equipment.
Protect the process.
Media, adsorption, gravity and mechanical filtration for suspended solids, turbidity and selected contaminant-removal duties.
6 filter familiesDifferent removal mechanisms
Media & adsorptionSolids and selected contaminants
Gravity & pressureHydraulic duty matched to site
Online optionsContinuous-cleaning configurations
TECHNOLOGY & CONFIGURATION
Filtration equipment
Filter selection starts with what needs to be removed. Hydraulic loading, media behavior, cleaning resources and downstream requirements determine the equipment.
Activated carbon
Adsorptive polishing for color, odor, residual chlorine and selected dissolved organics.
Mechanical polishing
Fiber-disc cloth and rotary drum screens for fine solids capture.
EXPLORE THE EQUIPMENT

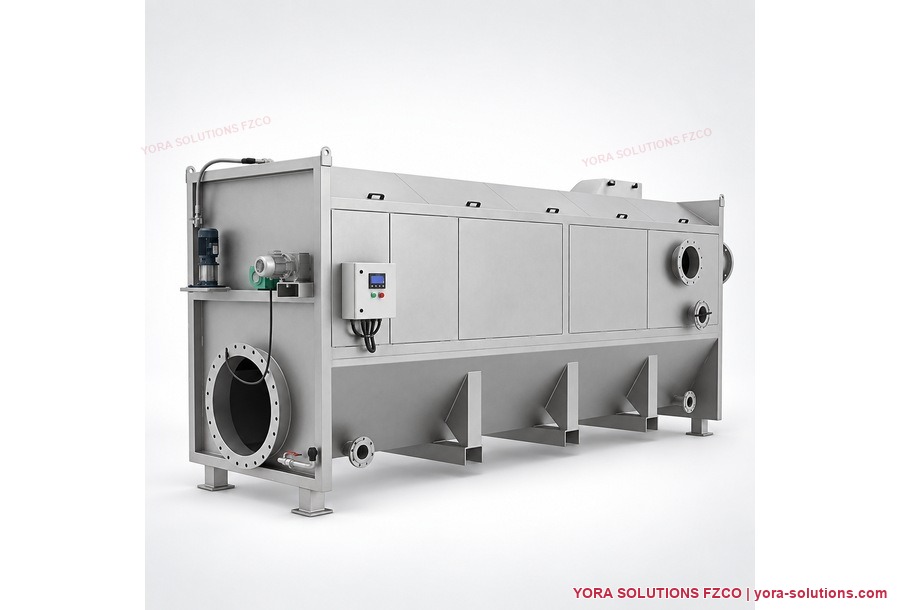

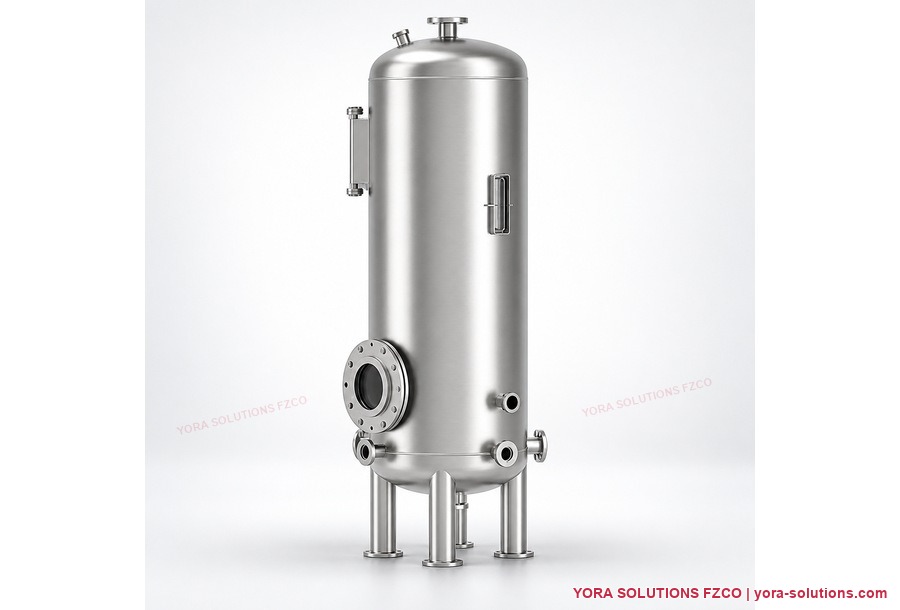

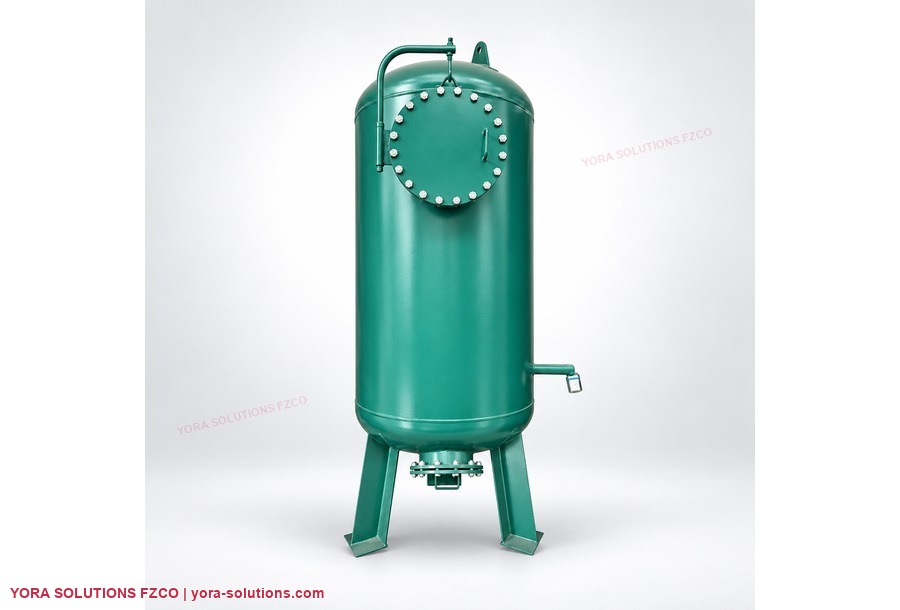

See the different configurations.
Representative equipment from the range. Final dimensions and arrangement follow the project duty. Select an image to enlarge.
PRELIMINARY SELECTION
Define the duty.
Select the configuration.
Published ranges support initial selection. Final equipment, dimensions, materials and performance commitments follow the confirmed project requirements.
| Family | Published range | Design consideration |
|---|---|---|
| Continuous sand | 9–84 m³/h per module | Continuous media washing |
| Quartz-sand pressure | 5–70.6 m³/h | Media depth and backwash |
| Activated carbon | 6–71 m³/h | Contact time and breakthrough |
| V-type gravity | 1,500–30,000 m³/day | Multiple filter cells |
| Fiber disc | Approx. 2,000–50,000 m³/day | Listed 10-micron cloth |
| Rotary drum | 3,000–30,000 m³/day | Feed solids and wash duty |
Ranges are indicative and are not universal performance guarantees. Additional sizes and arrangements are available on request. See the product datasheet for the detailed selection basis.
PROCESS & SUPPLY BOUNDARY
Coordinate every stage.
01Define contaminant
02Select media or screen
03Set hydraulic loading
04Define cleaning
05Route washwater
Typical package scope
- Filter body and internal distribution
- Specified media or screen elements
- Cleaning equipment within package boundary
- Local controls, core instruments and documentation
Project options
- Parallel or duty/standby trains
- Backwash pumps, blowers and recovery
- Access platforms and lifting aids
- Online quality monitoring and SCADA
Supply inclusions and options are confirmed in the agreed quotation. Installation, commissioning and operation are available in Jordan, Iraq and the UAE; installation supervision and commissioning are available in other countries.
REQUEST A QUOTE
Start with the
project requirements.
- Water analysis and particle distribution
- Filtrate target and downstream equipment
- Available pressure or gravity head
- Backwash utilities and waste route
COMMON QUESTIONS
Before you specify.
Will a screen remove dissolved contaminants?
Screens primarily remove suspended particles. Dissolved-contaminant duties may require adsorption or another selected treatment process.
How is activated carbon sized?
Selection considers the contaminant loading, carbon type, empty-bed contact time and required breakthrough criterion.
