Conventional potable water
Coagulation, flocculation, inclined-plate settling, V-type filtration and disinfection.
WATER & WASTEWATER
Packaged water treatment.
A coordinated process.
Factory-integrated potable-water and wastewater treatment packages with process equipment, piping, instrumentation and automatic control.
3 platformsConventional · UF · MBR
1,000–30,000 m³/dayPublished potable-water range
0.5–30 m³/hPublished packaged MBR range
PLC / HMICoordinated automatic sequencing
TECHNOLOGY & CONFIGURATION
Packaged water treatment systems
Choose the package from the raw-water characteristics, outlet requirements and operating philosophy. Potable-water systems and biological wastewater systems address different duties.
Submerged ultrafiltration
Protective fine screening and submerged membranes provide a compact physical barrier.
Packaged MBR wastewater
Screening, equalization, anoxic/oxic biology and membrane separation, with disinfection as required.

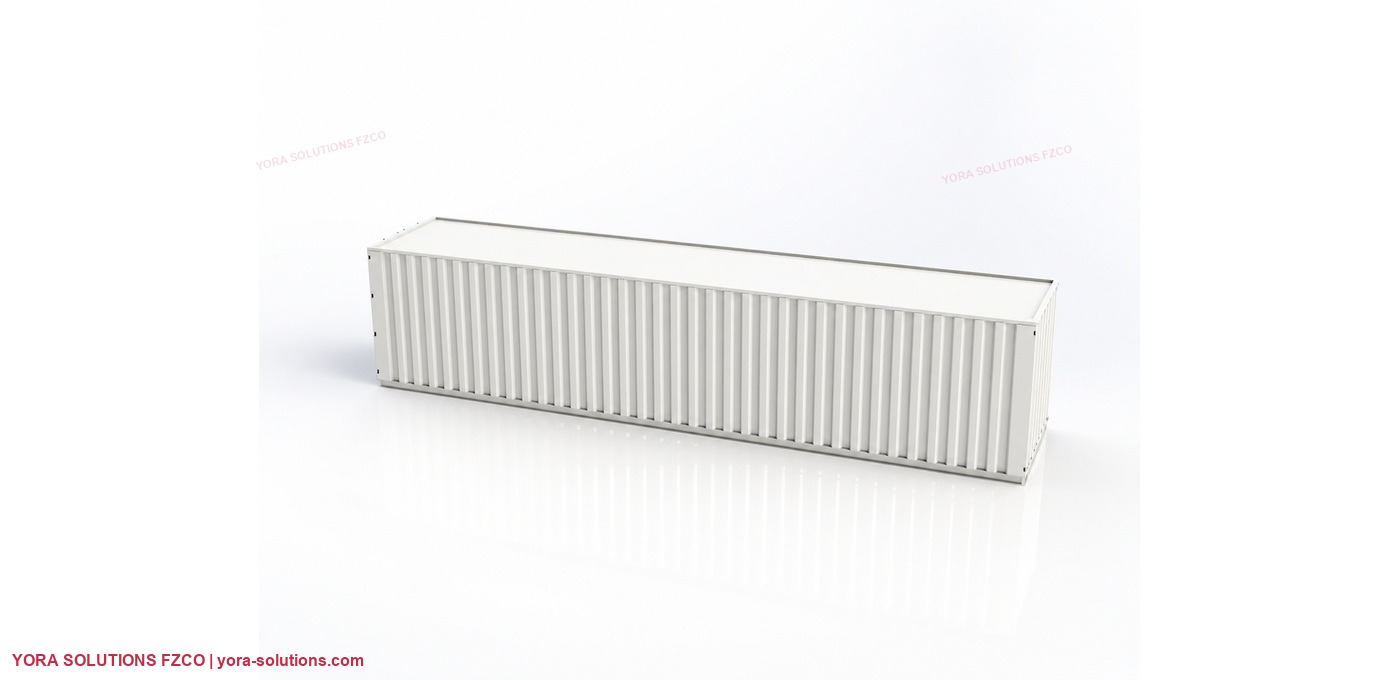

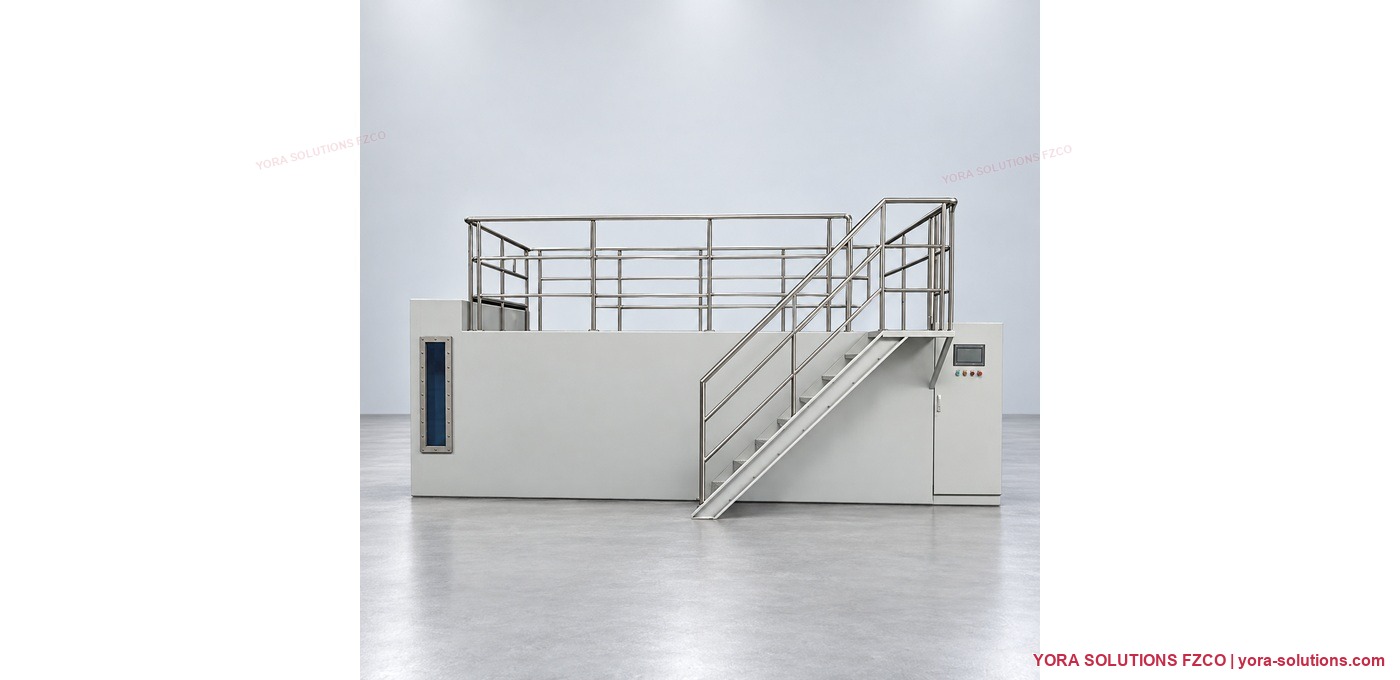

EXPLORE THE EQUIPMENT
See the different configurations.
Representative equipment from the range. Final dimensions and arrangement follow the project duty. Select an image to enlarge.
PRELIMINARY SELECTION
Define the duty.
Select the configuration.
Published ranges support initial selection. Final equipment, dimensions, materials and performance commitments follow the confirmed project requirements.
| Platform | Published capacity | Selection basis |
|---|---|---|
| Conventional potable | 1,000–30,000 m³/day | Solids loading and chemical conditioning |
| Submerged UF potable | 1,000–30,000 m³/day | Feed quality, membrane duty and cleaning |
| Packaged MBR | 0.5–30 m³/h | Influent loading and effluent standard |
The MBR range is equivalent to 12–720 m³/day at continuous 24-hour operation. Parallel trains and additional sizes are available on request.
PROCESS & SUPPLY BOUNDARY
Coordinate every stage.
01Source-water assessment
02Protective pretreatment
03Selected treatment platform
04Disinfection as required
05Storage / discharge
Typical package scope
- Selected process equipment and package tanks
- Interconnecting package piping and valves
- Core instruments, local panel and automatic sequence
- Access provisions and equipment documentation
Project options
- Feed, product, sludge and backwash tanks
- Sludge dewatering and backwash recovery
- Enclosure, HVAC and insulation
- Online analyzers, telemetry and SCADA
Supply inclusions and options are confirmed in the agreed quotation. Installation, commissioning and operation are available in Jordan, Iraq and the UAE; installation supervision and commissioning are available in other countries.
REQUEST A QUOTE
Start with the
project requirements.
- Complete raw-water or wastewater analysis
- Flow, outlet standard and reuse duty
- Climate, plot, utilities and drainage
- Redundancy, staffing and residuals route
COMMON QUESTIONS
Before you specify.
How do we choose conventional treatment or UF?
Selection depends on source-water variability, treatment targets, membrane suitability, available chemicals and the operating philosophy.
Does a membrane guarantee potable water?
No. The full treatment train, disinfection, membrane validation and applicable water-quality requirements must be assessed for the actual source.
