High-rate clarification
Chemical conditioning, sludge recycle and lamella separation for compact turbidity and phosphorus removal.
PROCESS WATER & WASTEWATER
Industrial water & wastewater.
A focused treatment process.
Clarification, nutrient removal and tertiary polishing packages for demanding industrial and municipal treatment duties.
4 process familiesSelected by treatment objective
ClarificationChemical and solids separation
Nitrogen polishingDenitrification filtration
Treatability basisWater-specific process selection
TECHNOLOGY & CONFIGURATION
Tough-to-treat process packages
The removal objective determines the process. These packages can operate as individual stages or form part of a wider treatment train.
Magnetic coagulation
Recoverable magnetic ballast increases floc density and accelerates solids separation.

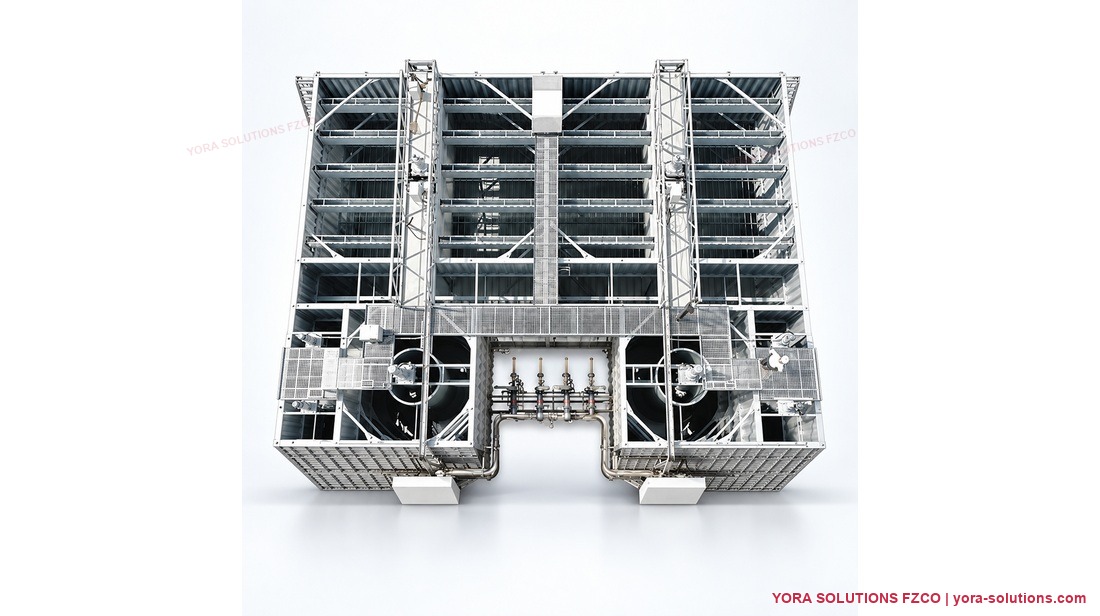

Denitrification filtration
Anoxic biofilm removes nitrate from nitrified effluent while deep-bed media retains solids.

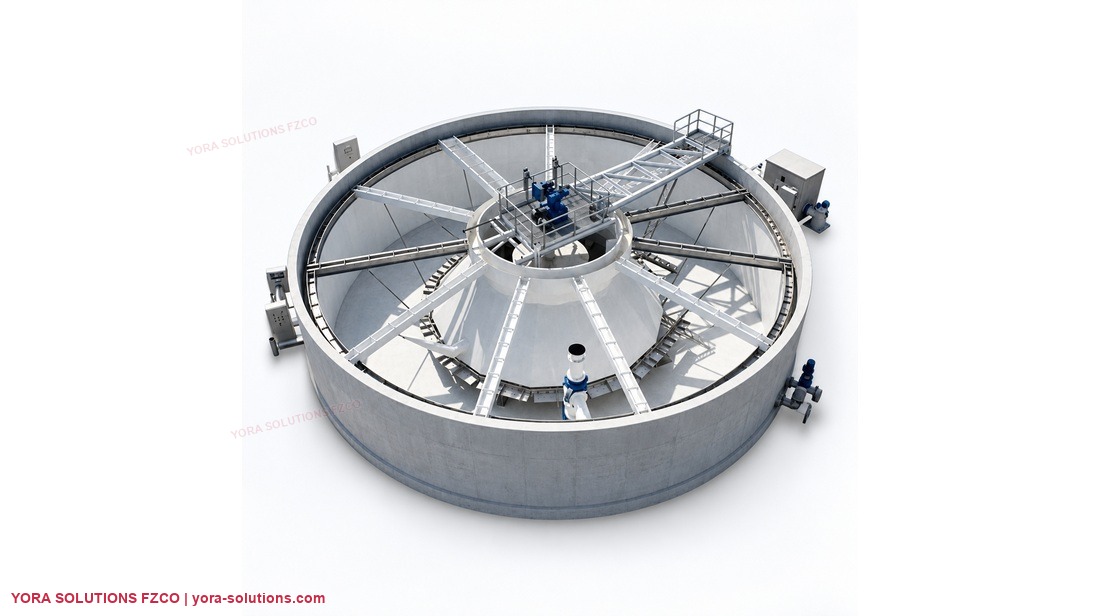

Solids-contact clarification
Mixing, returned-sludge contact and gravity separation are integrated within one basin.
EXPLORE THE EQUIPMENT
See the different configurations.
Representative equipment from the range. Final dimensions and arrangement follow the project duty. Select an image to enlarge.
PRELIMINARY SELECTION
Define the duty.
Select the configuration.
Published ranges support initial selection. Final equipment, dimensions, materials and performance commitments follow the confirmed project requirements.
| Family | Published capacity | Primary selection factor |
|---|---|---|
| High-rate clarifier | 1,000–20,000 m³/day | Coagulation and solids loading |
| Magnetic coagulation | 500–20,000 m³/day | Water matrix and ballast recovery |
| Denitrification filter | 1,000–30,000 m³/day | Nitrified feed and carbon availability |
| Solids-contact clarifier | 200–1,800 m³/h | Settleability and sludge circulation |
Ranges are indicative and are not universal performance guarantees. Additional sizes and arrangements are available on request. See the product datasheet for the detailed selection basis.
PROCESS & SUPPLY BOUNDARY
Coordinate every stage.
01Feed characterization
02Process selection
03Conditioning / biological duty
04Separation / filtration
05Residuals handling
Typical package scope
- Selected process equipment and internal assemblies
- Drives, process connections and supports
- Local electrical controls
- General arrangement and quality documentation
Project options
- Chemical preparation, dosing and storage
- Feed, recycle, sludge and backwash pumps
- Online analyzers and SCADA
- Platforms, enclosure and insulation
Supply inclusions and options are confirmed in the agreed quotation. Installation, commissioning and operation are available in Jordan, Iraq and the UAE; installation supervision and commissioning are available in other countries.
REQUEST A QUOTE
Start with the
project requirements.
- Average, peak and minimum flow
- TSS, turbidity, COD, nutrients and chemistry
- Required outlet limits and downstream sensitivity
- Hydraulic profile, footprint, utilities and materials
COMMON QUESTIONS
Before you specify.
Can denitrification filtration treat raw wastewater directly?
This duty requires already nitrified feed. Nitrate loading, dissolved oxygen, carbon, temperature and backwashing govern selection.
Are the quoted capacities performance guarantees?
No. Treatability testing, chemical optimization and the confirmed feed envelope establish the final design and outlet commitments.
