Coarse & high-capacity
Claw, manual bar, rotary bar, cable-operated bar and travelling band screens.
SCREENING & SOLIDS HANDLING
Wastewater screens & headworks.
A stronger treatment train.
Coarse, fine and specialist screening with coordinated screenings handling for inlet works, intakes and pumping stations.
11 familiesCoarse, fine and specialist duties
1–300 mmOpening range across families
Peak-flow designChannel levels and head loss
Defined solids routeWashing, conveying and disposal
TECHNOLOGY & CONFIGURATION
Wastewater headworks screening
Select the debris-removal mechanism before fixing the channel. Solids capture must be balanced against hydraulic head loss, access and the disposal route.
Fine & continuous
Multi-rake, step, center-flow and rotary drum screens for downstream protection.
Specialist duty
Micro screens for fine separation and channel grinders where reduced-size solids can remain in the flow.
EXPLORE THE EQUIPMENT
See the different configurations.
Representative equipment from the range. Final dimensions and arrangement follow the project duty. Select an image to enlarge.
PRELIMINARY SELECTION
Define the duty.
Select the configuration.
Published ranges support initial selection. Final equipment, dimensions, materials and performance commitments follow the confirmed project requirements.
| Representative family | Published selection | Key input |
|---|---|---|

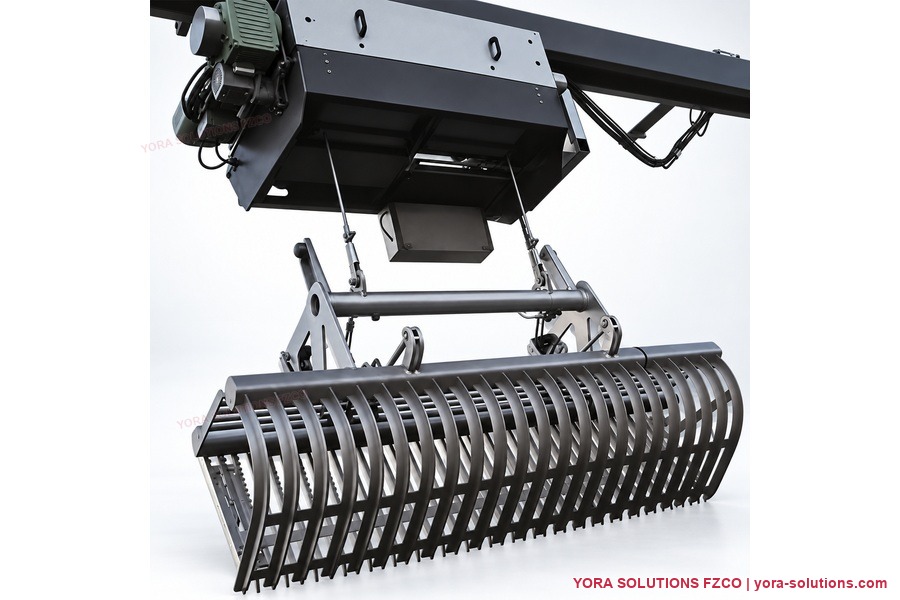

| Claw screen | 200–300 mm bar spacing | Debris load and lifting route |

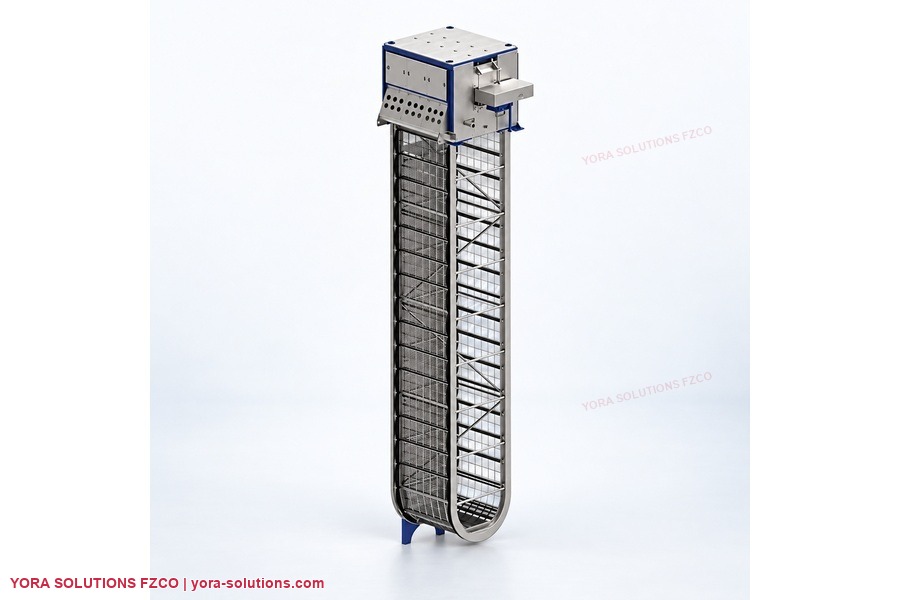

| Travelling band | 3–10 mm aperture | Flow and submergence |

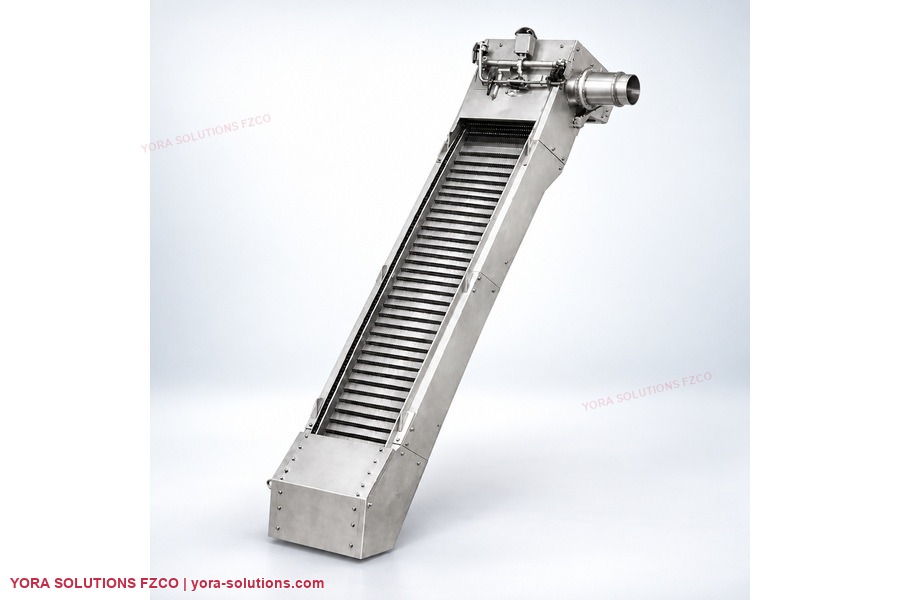

| Multi-rake | 1–50 mm bar spacing | Width and differential head |

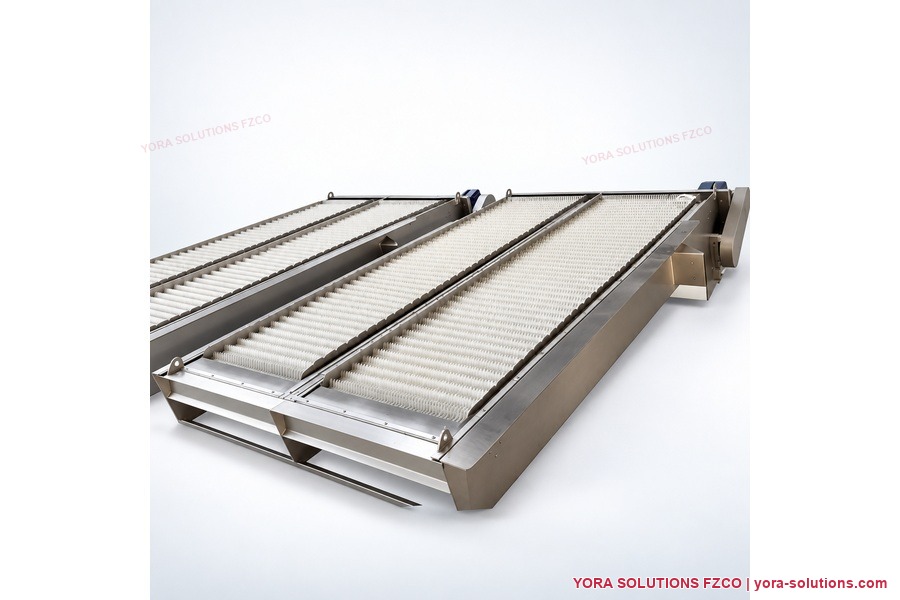

| Step screen | 3 / 5 / 10 mm apertures | Channel velocity |

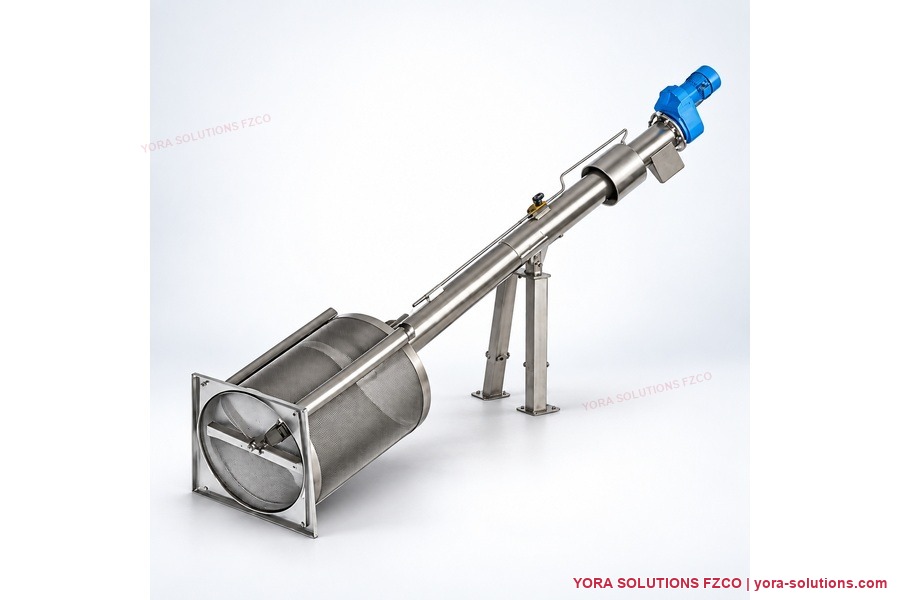

| Rotary drum | 1–5 mm typical gap | Integrated solids handling |
| Channel grinder | 540–4,270 m³/h | Downstream solids acceptance |
Ranges are indicative and are not universal performance guarantees. Additional sizes and arrangements are available on request. See the product datasheet for the detailed selection basis.
PROCESS & SUPPLY BOUNDARY
Coordinate every stage.
01Incoming debris
02Screening / size reduction
03Cleaning mechanism
04Conveying & compaction
05Disposal or onward flow
Typical package scope
- Selected screen, frame and cleaning mechanism
- Drive and overload protection
- Main supports and channel interfaces
- Local controls and equipment documentation
Project options
- Conveyors, washers and compactors
- Washwater booster and spray headers
- Platforms, guards and lifting equipment
- Bypass / standby arrangements and SCADA
Supply inclusions and options are confirmed in the agreed quotation. Installation, commissioning and operation are available in Jordan, Iraq and the UAE; installation supervision and commissioning are available in other countries.
REQUEST A QUOTE
Start with the
project requirements.
- Average and peak flows with water levels
- Channel width, depth and discharge height
- Debris type, size, volume and capture target
- Materials, redundancy and disposal route
COMMON QUESTIONS
Before you specify.
Does grinding remove the solids?
No. Grinding reduces debris size but does not remove solids mass. It is appropriate only where the downstream process accepts comminuted solids.
Can the screen be chosen by flow alone?
No. Debris loading, opening, channel geometry, water levels, allowable head loss and maintenance access are also required.
